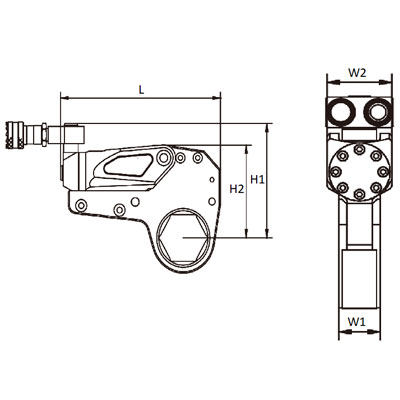

| 动力头型号 | 扭矩范围 | 适用螺母对边 | 尺寸参考 | 动力头重量 | 六角驱动盒重量 | |||||
| N. m | mm | L | H1 | H2 | W1 | W2 | Kg | Kg | ||
| HYDRFC-2HLCT | 232 | 2328 | 19-55 | 196 | 126 | 102 | 32 | 51 | 1.1 | 1. 6 |
| HYDRFC-2HLCT | 241 | 2416 | 60 | 196 | 129 | 105 | 32 | 51 | 1.1 | 1. 7 |
| HYDRFC-4HLCT | 585 | 2510 | 34-36 | 245 | 177 | 136 | 42 | 66 | 2.1 | 4.5 |
| HYDRFC-4HLCT | 585 | 5021 | 41 | 245 | 177 | 136 | 42 | 66 | 2.1 | 45 |
| HYDRFC-4HLCT | 585 | 5858 | 46-65 | 246 | 187 | 146 | 42 | 66 | 2.1 | 4. 6 |
| HYDRFC-4HLCT | 647 | 6476 | 70-80 | 246 | 187 | 146 | 42 | 66 | 2.1 | 4.6 |
| HYDRFC-8HLCT | 1094 | 10941 | 41-95 | 300 | 207 | 169 | 53 | 83 | 3. 3 | 8 |
| HYDRFC-8HLCT | 1177 | 11776 | 100-105 | 301 | 216 | 178 | 53 | 83 | 3. 3 | 8. 6 |
| HYDRFC-14HLCT | 1852 | 18521 | 50-117 | 361 | 239 | 204 | 64 | 99 | 5.6 | 11. 6 |
| HYDRFC-30HLCT | 4188 | 41882 | 85-155 | 430 | 303 | 272 | 85 | 131 | 11.6 | 29 |
| HYDRFC-30HLCT | 4460 | 44593 | 160-175 | 441 | 315 | 285 | 85 | 131 | 11.6 | 30 |
