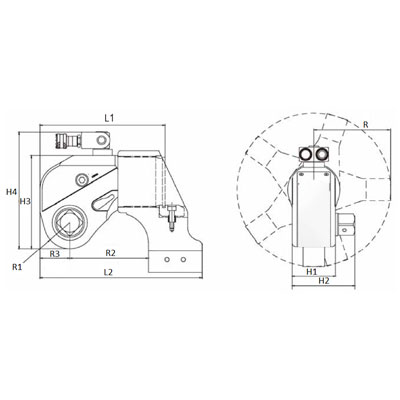

| 型号 | 扭矩范围 | 螺栓规格 | 驱动轴 Inch |
L1 | L2 | H1 | H2 | H3 | H4 | R | R1 | R2 | R3 | 重量 |
| Nm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | |||
| HYDRFC-1MXTH | 183-1838 | m16-m36 | ¾ | 145 | 174 | 50 | 72 | 96 | 131 | 92 | 26 | 85 | 29 | 2.3 |
| HYDRFC-3MXTH | 451-4512 | m22-m48 | 1 | 178 | 229 | 68 | 95 | 127 | 177 | 124 | 34 | 114 | 40 | 5.1 |
| HYDRFC-5MXTH | 752-7528 | m27-m56 | 1½ | 211 | 271 | 80 | 123 | 149 | 199 | 140 | 39 | 137 | 47 | 7.9 |
| HYDRFC-8MXTH | 1078-10780 | m30-m64 | 1½ | 222 | 293 | 90 | 134 | 167 | 217 | 165 | 47 | 153 | 47 | 10.8 |
| HYDRFC-10MXTH | 1551-15516 | m36-m72 | 1½ | 246 | 318 | 100 | 142 | 182 | 232 | 178 | 51 | 154 | 59 | 15.1 |
| HYDRFC-15MXTH | 2068-20628 | m39-m80 | 2 | 293 | 361 | 112 | 167 | 206 | 276 | 189 | 56 | 174 | 67 | 21.9 |
| HYDRFC-20MXTH | 2666-26666 | m42-m90 | 2½ | 308 | 384 | 120 | 183 | 220 | 270 | 213 | 59 | 186 | 71 | 26.1 |
| HYDRFC-25MXTH | 3472-34725 | m48-m100 | 2½ | 323 | 401 | 137 | 200 | 247 | 297 | 228 | 66 | 199 | 73 | 33.6 |
| HYDRFC-35MXTH | 4866-48666 | m64-m120 | 2½ | 373 | 497 | 153 | 216 | 282 | 332 | 244 | 77 | 241 | 90 | 51 |
| HYDRFC-50MXTH | 7210-72000 | m72-m125 | 2½ | 400 | 516 | 160 | 223 | 291 | 341 | 258 | 81 | 259 | 98 | 86 |
